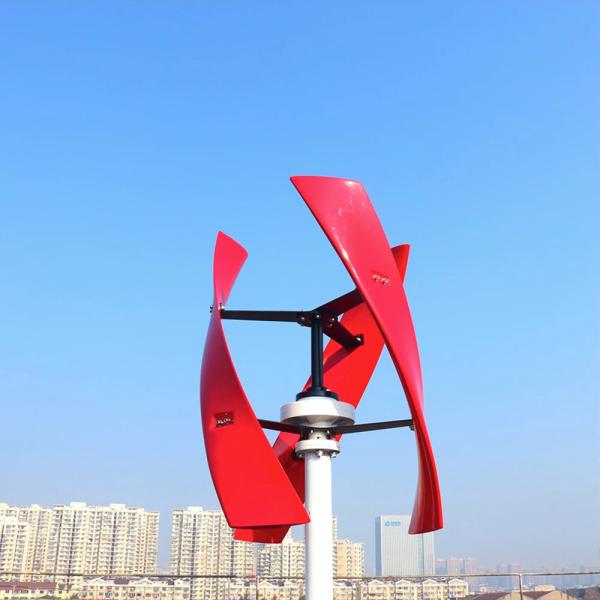

Modern Free Alternative Energy Small Vertical Wind Turbine 1KW 2KW
24V 48V Permanent Magnet Generator With Good Shape
Speaking of wind turbines, you might think of those that look like
airplane propellers, and they're called horizontal-axis wind
turbines. But there is another type of wind turbine still in
development that seems to have great potential to reduce the
limitations of horizontal axis turbines.
Vertical axis turbines are easily distinguished by their vertical
shape. Unlike horizontal axis turbines, vertical turbines come in a
variety of shapes and designs.
A wind turbine cannot be a wind turbine unless there are few
blades. Likewise, horizontal axis turbines and vertical axis
turbines have a set of blades. But they don't rotate horizontally,
they rotate vertically. So, the rotation axis of VAWT is vertical,
which is why it has such a name.
Engineers designed VAWT to make turbines more economical and
practical than conventional turbines.
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre |
| Type of Generator | Three-phase AC Permanent Magnet Generator |
| Magnetic Steel Material | NdFeB |
| Control System | Electromagnet |
| Working Temperature | -40℃-80℃ |
| Design Life | 20 Years |
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber |
| Type of Generator | Three-phase AC Permanent Magnet Generator |
| Magnetic Steel Material | NdFeB |
| Control System | Electromagnet |
| Working Temperature | -40℃-80℃ |
| Design Life | 20 Years |
Advantages of vertical axis wind turbines
Some features of VAWT make people choose it over HAWT for
residential and commercial use. Let's see what benefits VAWT can
bring to your home or office.
1. You don't need to set the turbine too high off the ground. Even
if you don't have the proper roof placement, you can easily build
the turbine close to the ground. Just make sure the area is clear
of any obstructions.
2. The maintenance cost of such turbines is much lower than that of
horizontal turbines. Due to the close proximity of the turbine to
the ground, necessary maintenance is easy and safe.
3. If you're an animal lover, you'll love the fact that vertical
axis wind turbines are bird friendly and won't harm wildlife.
4. These turbines don't make as much noise as the HAWT. Operating
noise is much lower than conventional turbines.
5. You don't need to point the turbine towards the wind. They work
well even when exposed to different wind directions.
6. No additional mechanism is required to operate.
7. You can set up multiple VAWTs close to each other. It is not
necessary to have large fields and farms.
8. Suitable for areas where towering structures are not allowed.
9. You can easily transport turbines from one place to another.
10.Vertical axis wind turbines are very economical and suitable for
small residential energy production. Great for urban areas.
Compared to horizontal turbines, their cost is much lower.
Many of these turbines are resistant to various weather elements.
You can easily choose a unit that best suits your local
environment.
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and
maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
